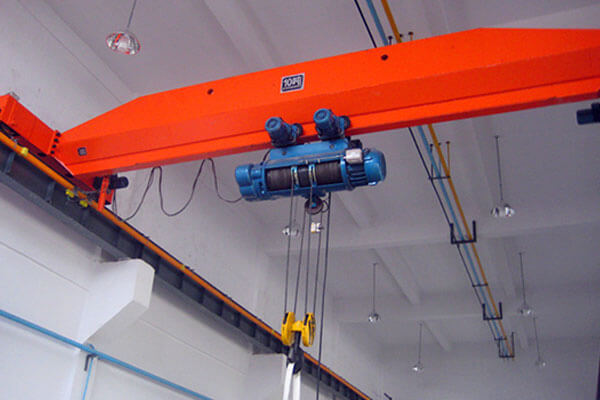

LDA model single girder overhead crane is a kind of light duty crane, with a capacity of 1 to 20 tons. The span is 7.5to 31.5 meters. Working grade is A3. Working temperature is -25°C to 40°C.

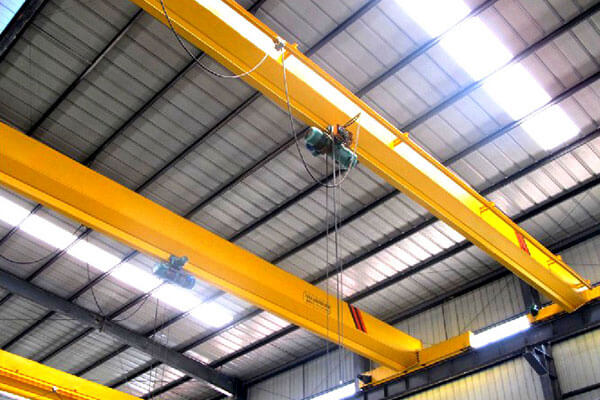

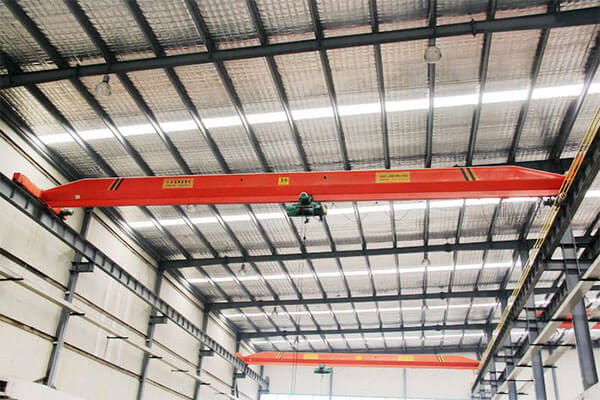

It is widely used in plants, warehouse, and material stocks to lift goods.
It is matched with electric hoist which is CD model or MD model.
It is prohibited to use the equipment in the combustible, explosive or corrosives environment.
Capacity |
T |
1 |
|||||||
Span |
m |
7.5 |
11.5 |
14.5 |
17.5 |
19.5 |
22.5 |
25.5 |
28.5 |
Lifting height |
m |
6、 9、 12、18、 24、 30 |
|||||||
Lifting speed |
m/min |
8 or 8/0.8 |
|||||||
Hoist travelling speed |
m/min |
20 |
|||||||
Crane travelling speed |
m/min |
20 |
|||||||
Total weight |
kg |
1590 |
1960 |
2390 |
2850 |
3060 |
3550 |
4610 |
5660 |
Max. Wheel load |
KN |
8.7 |
9.9 |
11 |
12.2 |
12.8 |
14 |
16.7 |
19.4 |
Rail recommended |
Model |
24kg/m |
|||||||
Total motor power |
kw |
1.7 |
|||||||
Main dimension (mm) |
Span(m) |
7.5 |
11.5 |
14.5 |
17.5 |
19.5 |
22.5 |
25.5 |
28.5 |
Rail top to crane top |
H |
490 |
530 |
580 |
660 |
745 |
|||
Rail top to hook center |
H4 |
910 |
955 |
970 |
990 |
1010 |
|||
Crane base distance |
W |
1500 |
2000 |
2000 |
2500 |
2500 |
3000 |
3500 |
4000 |
Crane width |
B |
2000 |
2500 |
2500 |
3000 |
3000 |
3500 |
4000 |
4500 |
Hook left limitation |
S1 |
796 |
|||||||
Hook right limitation |
S2 |
1274 |
Capacity |
T |
2 |
|||||||
Span |
m |
7.5 |
11.5 |
14.5 |
17.5 |
19.5 |
22.5 |
25.5 |
28.5 |
Lifting height |
m |
6、 9、 12、18、 24、 30 |
|||||||
Lifting speed |
m/min |
8 or 8/0.8 |
|||||||
Hoist travelling speed |
m/min |
20 |
|||||||
Crane travelling speed |
m/min |
20 |
|||||||
Total weight |
kg |
1680 |
2140 |
2670 |
3480 |
3760 |
4400 |
5680 |
6850 |
Max. Wheel load |
KN |
13.6 |
15.2 |
16.7 |
18.8 |
19.5 |
21.2 |
24.4 |
27.4 |
Rail recommended |
Model |
24kg/m |
|||||||
Total motor power |
kw |
3.4 |
|||||||
Main dimension (mm) |
Span(m) |
7.5 |
11.5 |
14.5 |
17.5 |
19.5 |
22.5 |
25.5 |
28.5 |
Rail top to crane top |
H |
490 |
580 |
660 |
785 |
820 |
875 |
||
Rail top to hook center |
H4 |
1080 |
1125 |
1140 |
1160 |
1135 |
1200 |
1250 |
|
Crane base distance |
W |
1500 |
2000 |
2500 |
3000 |
3500 |
4000 |
||
Crane width |
B |
2000 |
2500 |
3000 |
3500 |
4000 |
4500 |
||
Hook left limitation |
S1 |
796 |
|||||||
Hook right limitation |
S2 |
1274 |
Capacity |
T |
3 |
|||||||
Span |
m |
7.5 |
11.5 |
14.5 |
17.5 |
19.5 |
22.5 |
25.5 |
28.5 |
Lifting height |
m |
6、 9、 12、18、 24、 30 |
|||||||
Lifting speed |
m/min |
8 or 8/0.8 |
|||||||
Hoist travelling speed |
m/min |
20 、30 |
|||||||
Crane travelling speed |
m/min |
20 |
30 |
||||||
Total weight |
kg |
1860 |
2350 |
3120 |
3680 |
3970 |
5170 |
59500 |
8100 |
Max. Wheel load |
KN |
18.6 |
20.5 |
22.6 |
24.2 |
25 |
28.1 |
30.1 |
35.5 |
Rail recommended |
Model |
24kg/m |
|||||||
Total motor power |
kw |
4.9 |
|||||||
Main dimension (mm) |
Span(m) |
7.5 |
11.5 |
14.5 |
17.5 |
19.5 |
22.5 |
25.5 |
28.5 |
Rail top to crane top |
H |
530 |
580 |
660 |
725 |
835 |
880 |
940 |
|
Rail top to hook center |
H4 |
1270 |
1290 |
1305 |
1295 |
1330 |
1370 |
||
Crane base distance |
W |
1500 |
2000 |
2500 |
3000 |
3500 |
4000 |
||
Crane width |
B |
2000 |
2500 |
3000 |
3500 |
4000 |
4500 |
||
Hook left limitation |
S1 |
819 |
|||||||
Hook right limitation |
S2 |
1291 |
Capacity |
T |
5 |
|||||||
Span |
m |
7.5 |
11.5 |
14.5 |
17.5 |
19.5 |
22.5 |
25.5 |
28.5 |
Lifting height |
m |
6、 9、 12、18、 24、 30 |
|||||||
Lifting speed |
m/min |
8 or 8/0.8 |
|||||||
Hoist travelling speed |
m/min |
20 、30 |
|||||||
Crane travelling speed |
m/min |
20 |
30 |
||||||
Total weight |
kg |
2220 |
2860 |
3430 |
4440 |
4790 |
5550 |
68000 |
8990 |
Max. Wheel load |
KN |
28.7 |
31.4 |
33.2 |
36 |
37 |
39.1 |
42.3 |
47.9 |
Rail recommended |
Model |
24kg/m |
|||||||
Total motor power |
kw |
8.3 |
|||||||
Main dimension (mm) |
Span(m) |
7.5 |
11.5 |
14.5 |
17.5 |
19.5 |
22.5 |
25.5 |
28.5 |
Rail top to crane top |
H |
580 |
660 |
725 |
835 |
880 |
940 |
1020 |
|
Rail top to hook center |
H4 |
1460 |
1460 |
1475 |
1465 |
1500 |
1540 |
1520 |
|
Crane base distance |
W |
1500 |
2000 |
2500 |
3000 |
3500 |
4000 |
||
Crane width |
B |
2000 |
2500 |
3000 |
3500 |
4000 |
4500 |
||
Hook left limitation |
S1 |
842 |
|||||||
Hook right limitation |
S2 |
1310 |
Capacity |
T |
10 |
|||||||
Span |
m |
7.5 |
11.5 |
14.5 |
17.5 |
19.5 |
22.5 |
25.5 |
28.5 |
Lifting height |
m |
6、 9、 12、18、 24、 30 |
|||||||
Lifting speed |
m/min |
7 or 7/0.7 |
|||||||
Hoist travelling speed |
m/min |
20 、30 |
|||||||
Crane travelling speed |
m/min |
20 |
30 |
||||||
Total weight |
kg |
3060 |
3950 |
4640 |
5590 |
6010 |
7420 |
9220 |
14000 |
Max. Wheel load |
KN |
50.8 |
56.4 |
59.4 |
62.5 |
64 |
68 |
74.1 |
85.1 |
Rail recommended |
Model |
24kg/m |
|||||||
Total motor power |
kw |
13.8 |
|||||||
Main dimension (mm) |
Span(m) |
7.5 |
11.5 |
14.5 |
17.5 |
19.5 |
22.5 |
25.5 |
28.5 |
Rail top to crane top |
H |
735 |
835 |
890 |
880 |
920 |
1065 |
1160 |
|
Rail top to hook center |
H4 |
1815 |
1815 |
1840 |
1950 |
1970 |
1865 |
1890 |
|
Crane base distance |
W |
1500 |
2000 |
2500 |
3000 |
3500 |
4000 |
||
Crane width |
B |
2000 |
2500 |
3000 |
3500 |
4000 |
4700 |
||
Hook left limitation |
S1 |
1293 |
|||||||
Hook right limitation |
S2 |
1893 |
Capacity |
T |
16 |
|||||||
Span |
m |
7.5 |
11.5 |
14.5 |
17.5 |
19.5 |
22.5 |
25.5 |
28.5 |
Lifting height |
m |
6、 9、 12、18、 24、 30 |
|||||||
Lifting speed |
m/min |
3.5 or 3.5/0.35 |
|||||||
Hoist travelling speed |
m/min |
20 、30 |
|||||||
Crane travelling speed |
m/min |
20 |
30 |
||||||
Total weight |
kg |
3390 |
4420 |
5760 |
7350 |
7940 |
9210 |
13170 |
15300 |
Max. Wheel load |
KN |
76.5 |
84.3 |
89.6 |
94.9 |
97 |
100.9 |
111.4 |
117.2 |
Rail recommended |
Model |
24kg/m |
|||||||
Total motor power |
kw |
13.8 |
|||||||
Main dimension (mm) |
Span(m) |
7.5 |
11.5 |
14.5 |
17.5 |
19.5 |
22.5 |
25.5 |
28.5 |
Rail top to crane top |
H |
835 |
890 |
980 |
1065 |
1135 |
1200 |
1300 |
|
Rail top to hook center |
H4 |
2445 |
2470 |
2520 |
2495 |
2545 |
2590 |
2600 |
|
Crane base distance |
W |
1500 |
2000 |
2500 |
3000 |
3500 |
4000 |
||
Crane width |
B |
2000 |
2500 |
3000 |
3500 |
4200 |
4700 |
||
Hook left limitation |
S1 |
1293 |
|||||||
Hook right limitation |
S2 |
1893 |
Capacity |
T |
20 |
|||||||
Span |
m |
7.5 |
11.5 |
14.5 |
17.5 |
19.5 |
22.5 |
25.5 |
28.5 |
Lifting height |
m |
6、 9、 12、18、 24、 30 |
|||||||
Lifting speed |
m/min |
3.5 or 3.5/0.35 |
|||||||
Hoist travelling speed |
m/min |
20 、30 |
|||||||
Crane travelling speed |
m/min |
20 |
30 |
||||||
Total weight |
kg |
5270 |
6710 |
8550 |
10110 |
10850 |
12600 |
14280 |
14690 |
Max. Wheel load |
KN |
99 |
109.1 |
116.3 |
121.8 |
124.5 |
129.9 |
134.5 |
135.8 |
Rail recommended |
Model |
24kg/m |
|||||||
Total motor power |
kw |
19.3 |
|||||||
Main dimension (mm) |
Span(m) |
7.5 |
11.5 |
14.5 |
17.5 |
19.5 |
22.5 |
25.5 |
28.5 |
Rail top to crane top |
H |
900 |
970 |
1050 |
1130 |
1200 |
1300 |
||
Rail top to hook center |
H4 |
2400 |
2430 |
2490 |
2550 |
2590 |
2600 |
||
Crane base distance |
W |
2000 |
2000 |
2500 |
3000 |
3500 |
|||
Crane width |
B |
2700 |
3200 |
3700 |
4200 |
||||
Hook left limitation |
S1 |
1394 |
|||||||
Hook right limitation |
S2 |
1933 |
